HHIP 3902-3074 Expanding Mandrel Set, Range 1/2' to 2'

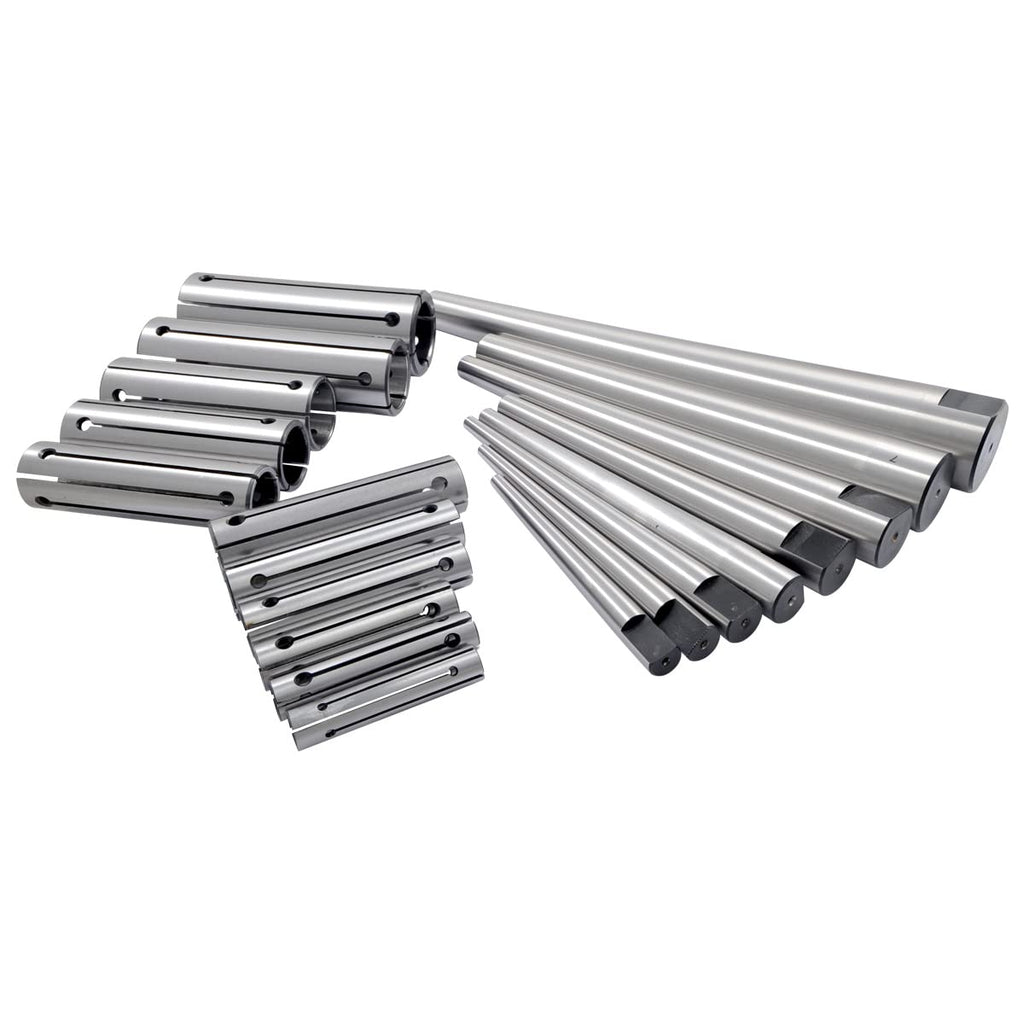

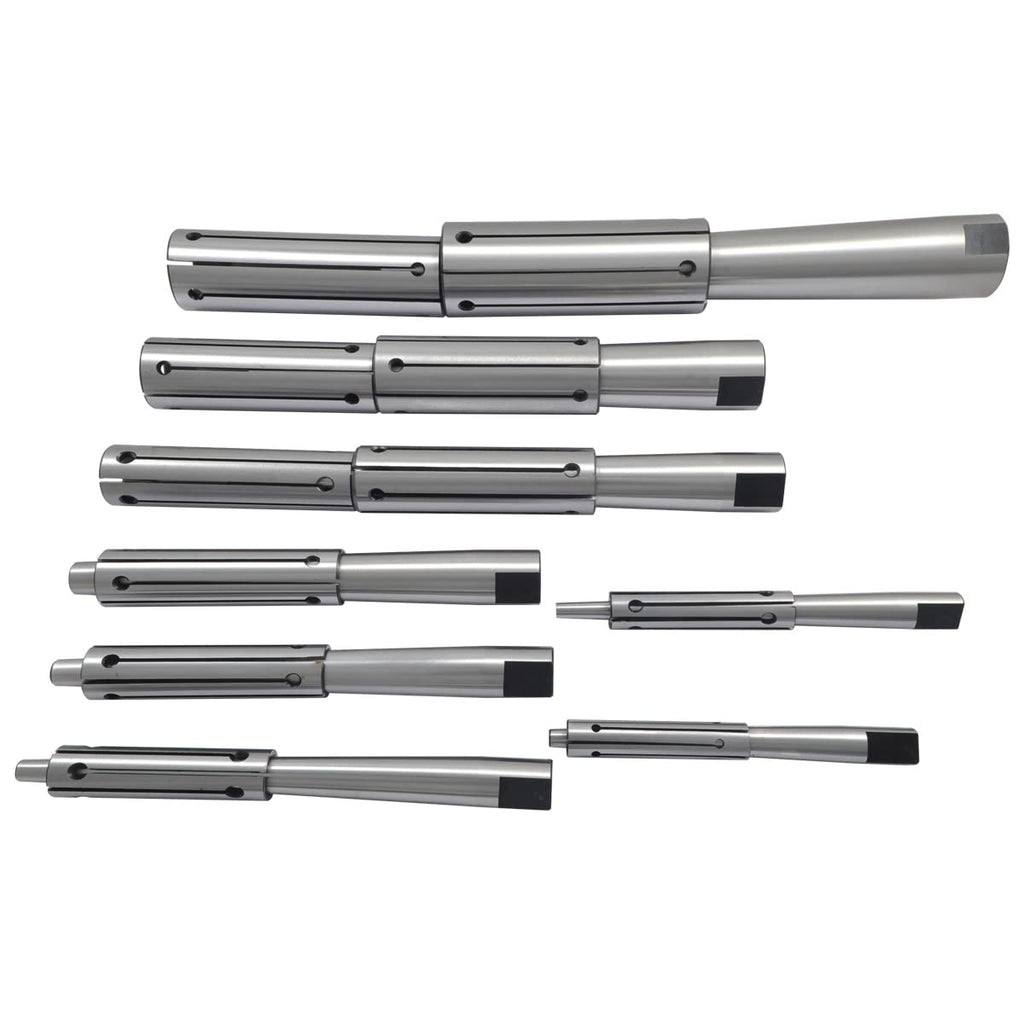

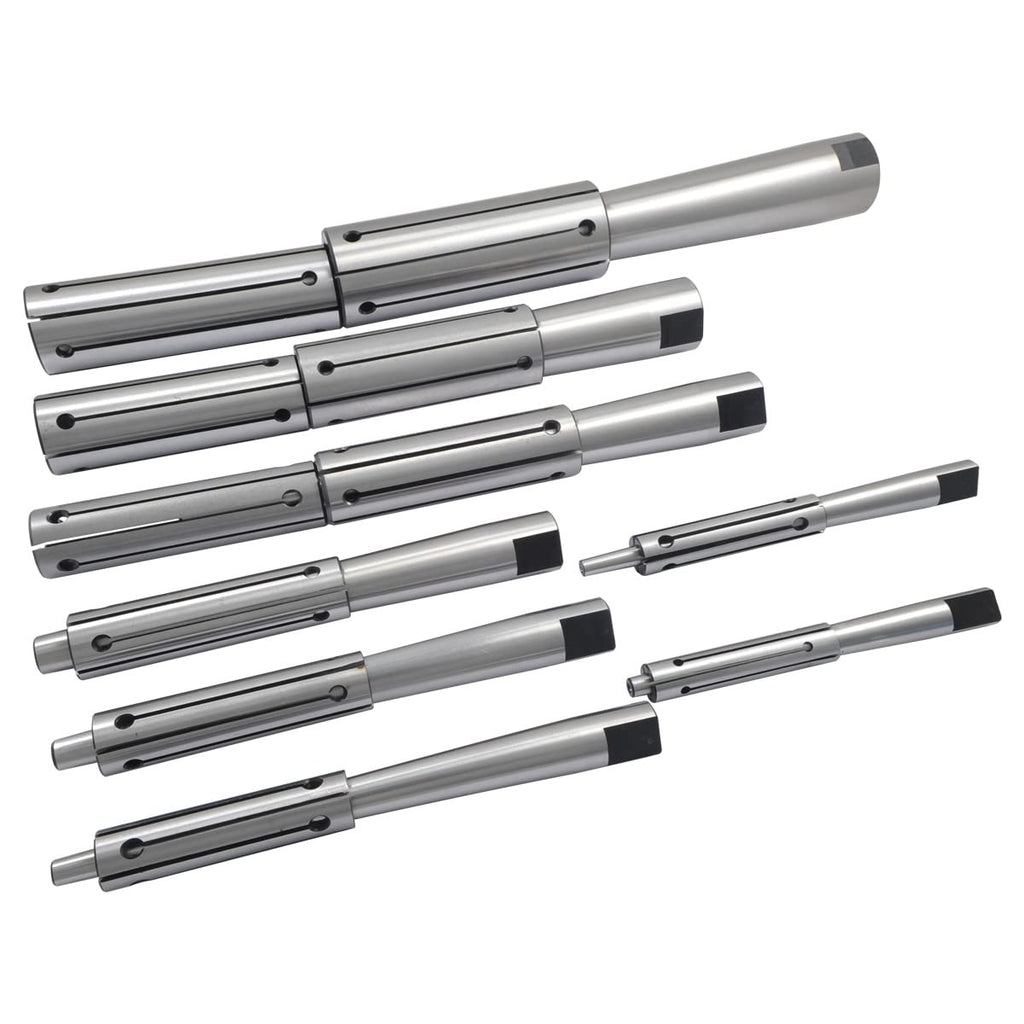

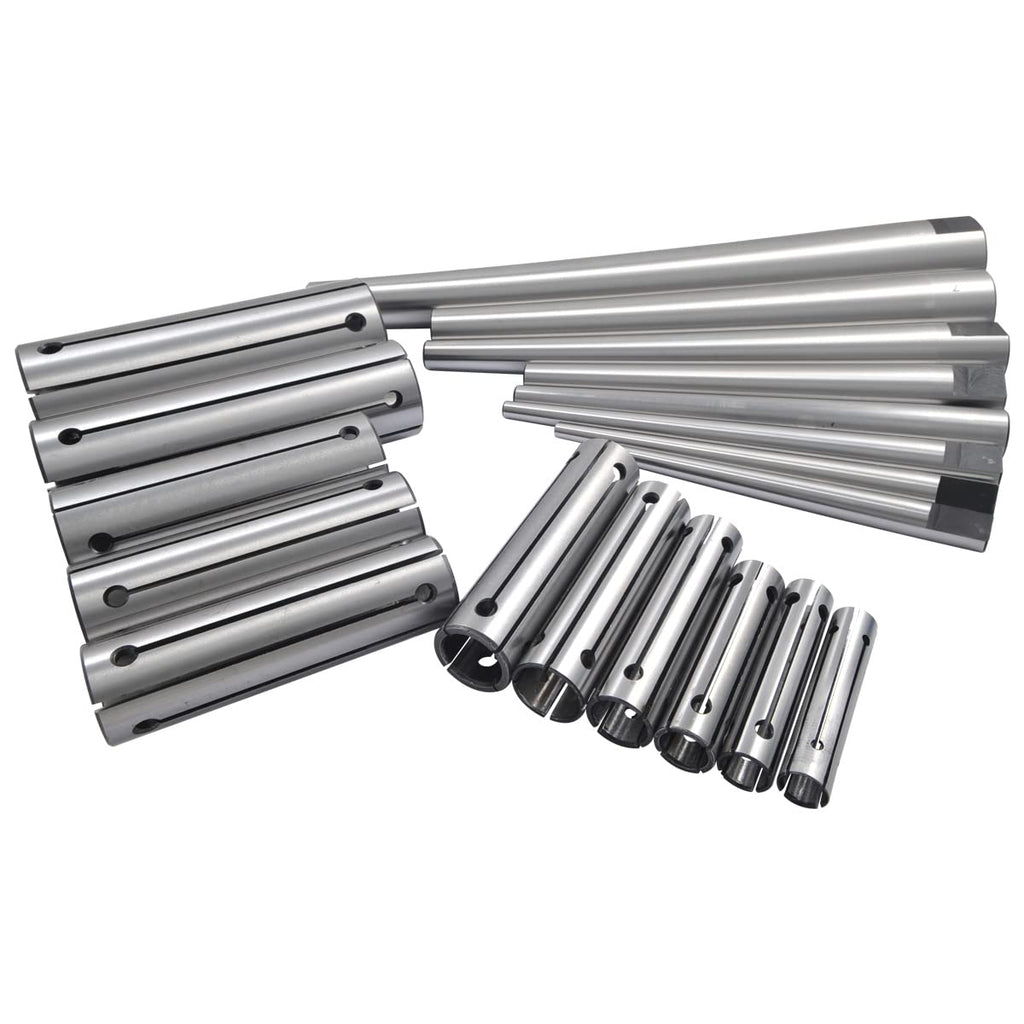

'HHIP 19 Piece Expanding Mandrel Set with a Range of 1/2 to 2'' Made of 64Mn high grade tool steel. Precision ground and heat treated for maximum concentricity and holding power. Arbor hardness is HRC55-60 and sleeve is HRC44-48. Center holes are ground and lapped. The automatic expansion feature can be utilized on any bore (standard or non-standard) within the range of the mandrel. Arbors are tapered and sleeves are flexible. Size is obtained by moving the sleeve along the arbor. 8 mandrels and 11 sleeves.'

Additional details

• Material Type : Blend

Features & Specs

• Capacity : 2 Inches
• Compatible Devices : Drilling Machine, Grinding Machine, Lathe, Milling Machine
• Handle Type : powered

Item details

• ASIN : B01ADK38YG
• Brand Name : HHIP
• Global Trade Identification Number : 00769053032832
• Included Components : Mandrel Set
• Item Type Name : 19 PIECE EXPANDING MANDREL SET (RANGE 1/2 TO 2 INCH)
• Manufacturer : HHIP
• Manufacturer Part Number : 3902-3074
• Model Number : 3902-3074
• UPC : 769053032832
• Unit Count : 1.0 Count

Measurements

• Item Diameter : 2 Inches
• Item Weight : 6.89 Kilograms
