HHIP 3902-3076 3 Piece Expanding Mandrel Set, 2' - 2-3/4' Size Range

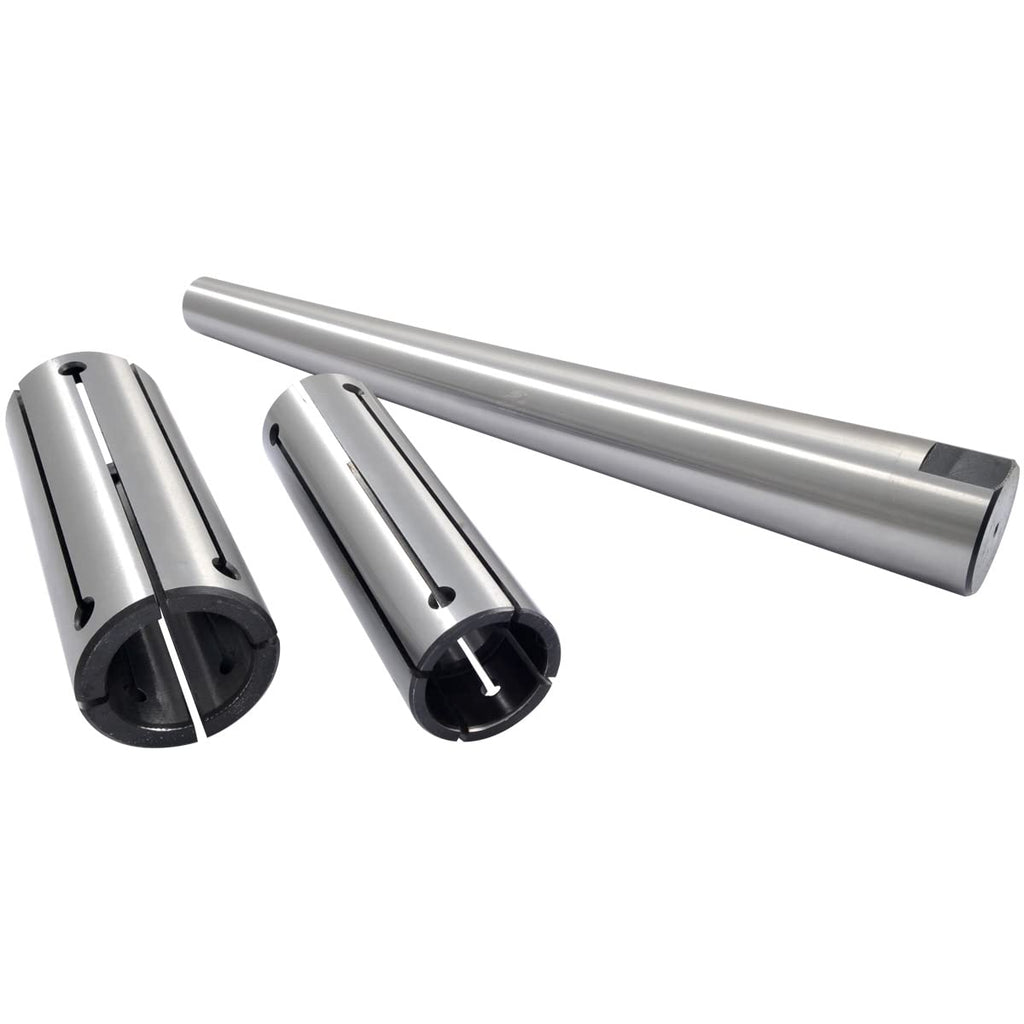

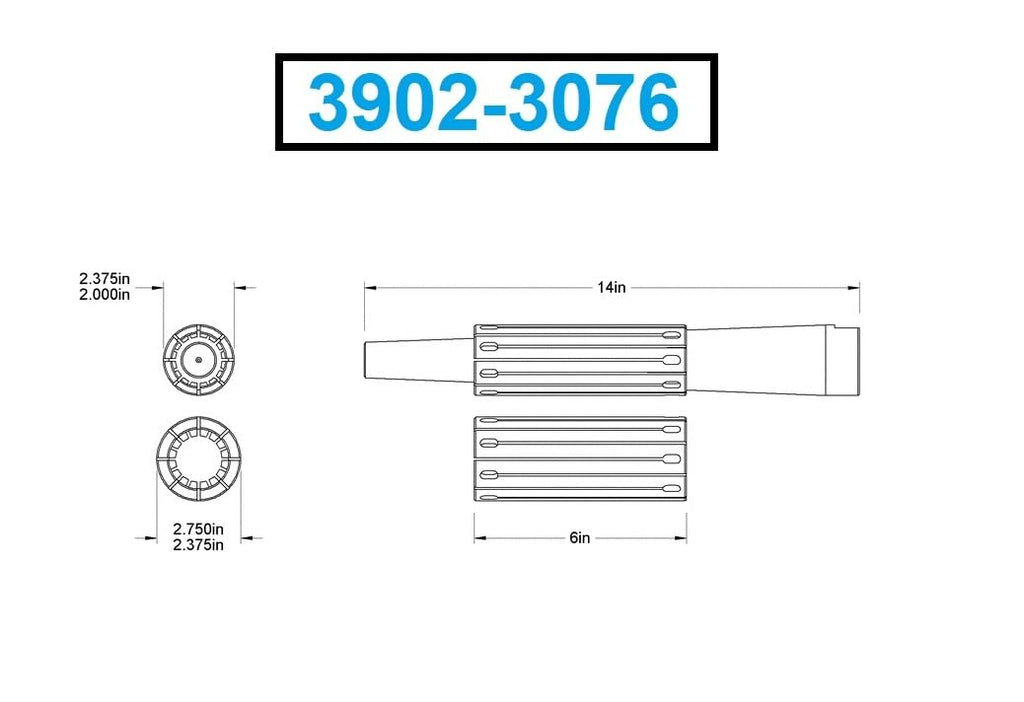

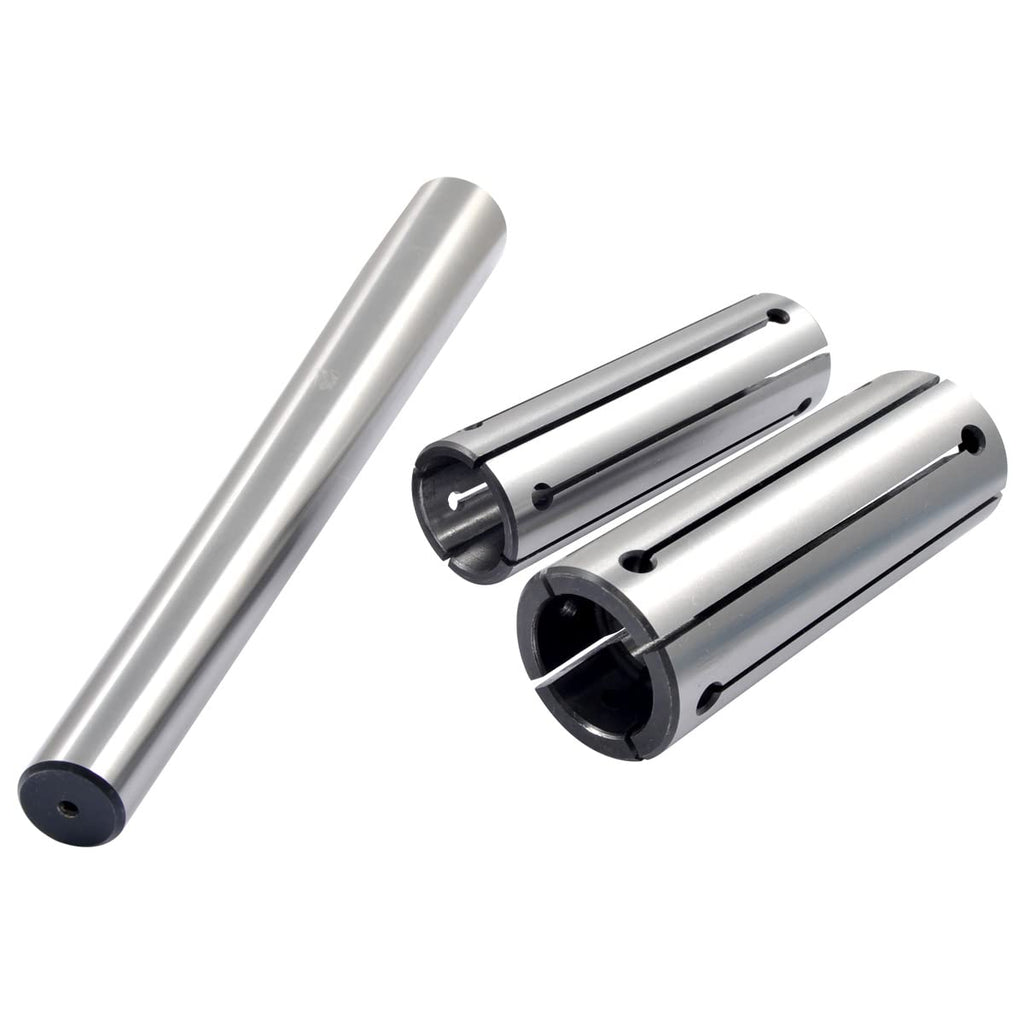

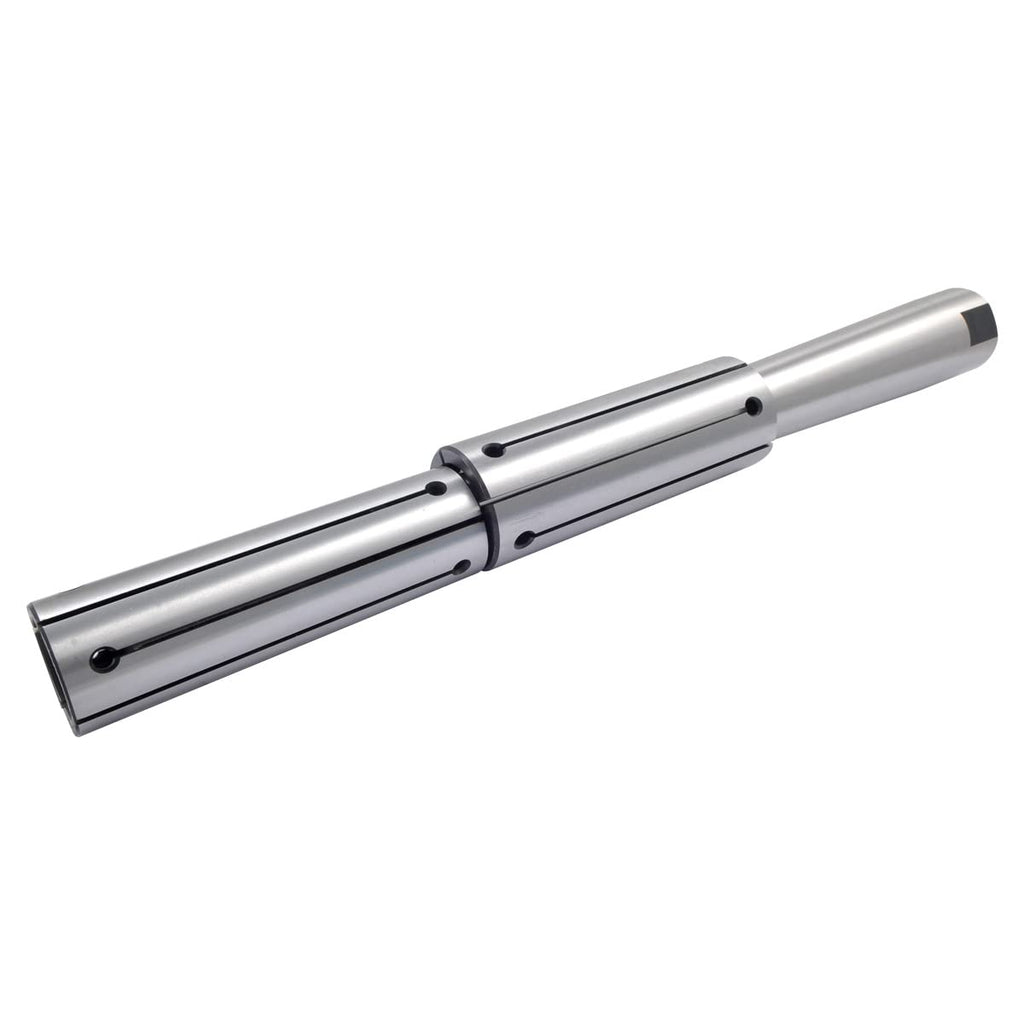

'HHIP 3 Piece 2 to 2-3/4'' with 14'' Arbor & 6'' Sleeve Expanding Mandrel Set Made of 64Mn high grade tool steel. Precision ground and heat treated for maximum concentricity and holding power. Arbor hardness is HRC55-60 and sleeve is HRC44-48. Center holes are ground and lapped. The automatic expansion feature can be utilized on any bore (standard or non-standard) within the range of the mandrel. Arbors are tapered and sleeves are flexible. Size is obtained by moving the sleeve along the arbor. Set has 2 expanding sleeves and one mandrel.'

Additional details

• Material Type : Alloy Steel

Features & Specs

• Compatible Devices : Drilling Machine, Grinding Machine, Milling Machine
• Handle Type : hand-tightened
• Lock Type : Automatic

Item details

• ASIN : B01LTFCMVE
• Brand Name : HHIP
• Global Trade Identification Number : 00769053032849
• Included Components : Mandrel Set
• Item Type Name : 2 TO 2-3/4' 14' ARBOR 6' SLEEVE EXPANDING MANDREL(3 PC/KIT)
• Manufacturer : ABS Import Tools, Inc.
• Manufacturer Part Number : 3902-3076
• Model Number : 3902-3076
• UPC : 769053032849
• Unit Count : 1.0 Count

Measurements

• Item Weight : 14 Pounds
